I stumbled upon the PAK while exploring the longstanding issue of no smartphones supporting reading/writing to sectors other than 0 on the NTAG I2C Plus 2k.
An Overview
NFC features three acknowledgements to commands that don’t return data: ACK (0x0A), NAK (0x00; negative acknowledgement), and the PAK (no response; passive acknowledgement). The problem is NFC controllers handle the PAK as a disconnect since no response is received. Because homophones are fun, I couldn’t resist diving deeper.
But TagInfo Can Read Sector 1
After a datasheet dive and failing at multiple attempts with NFC Tools and Raw NFC, I was annoyed that it didn’t work. But then I was alerted that TagInfo successfully reads Sector 1.

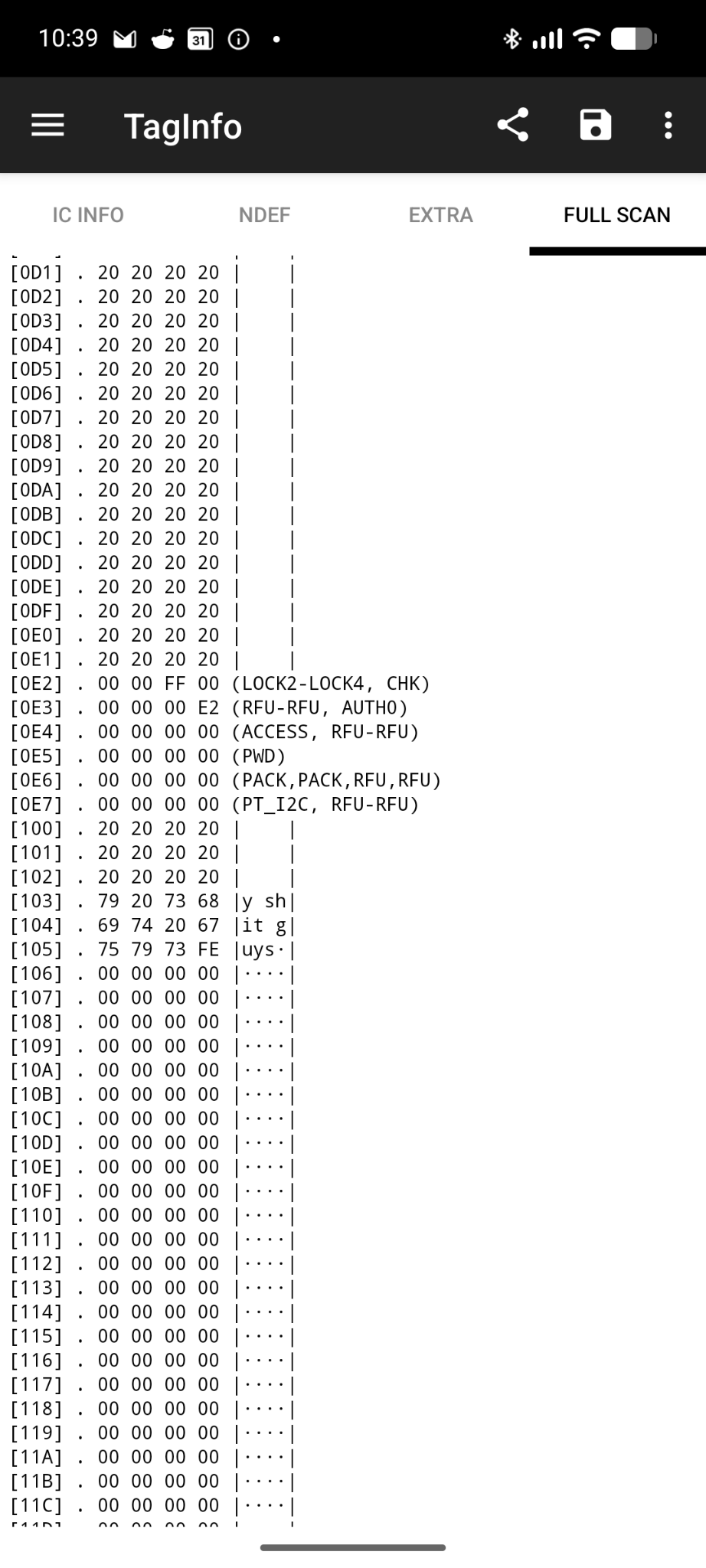

Sure enough. Looks to be reading—but is it really? If so, how?

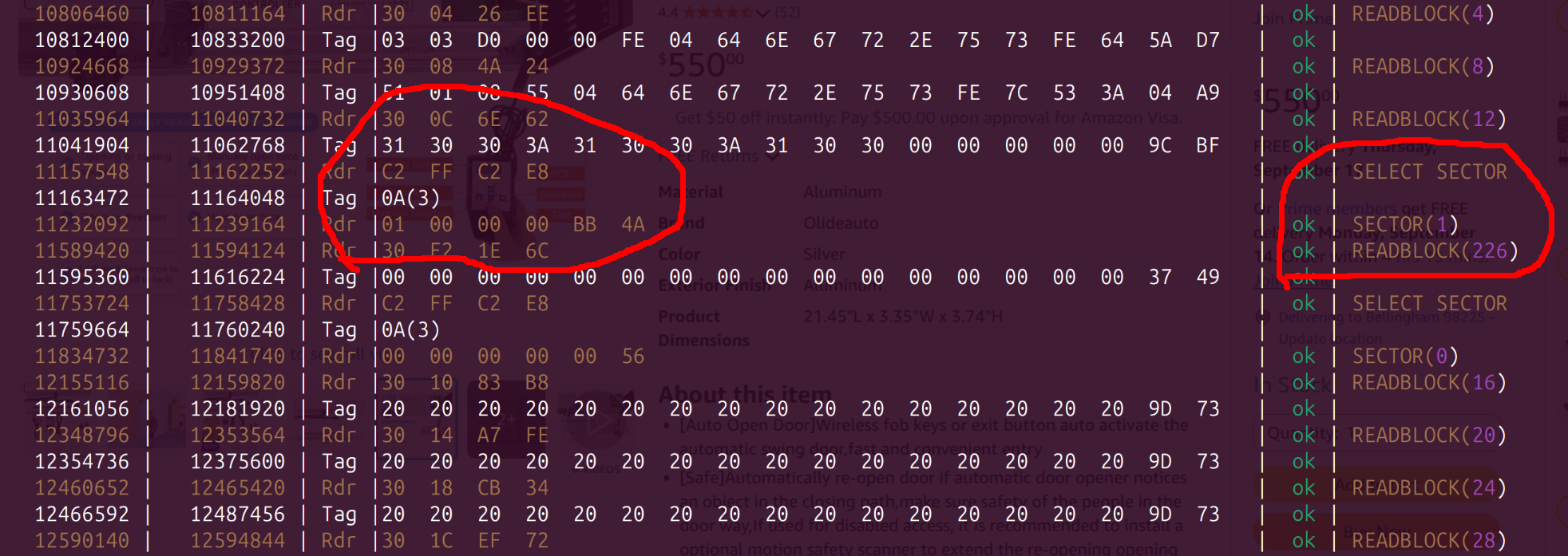

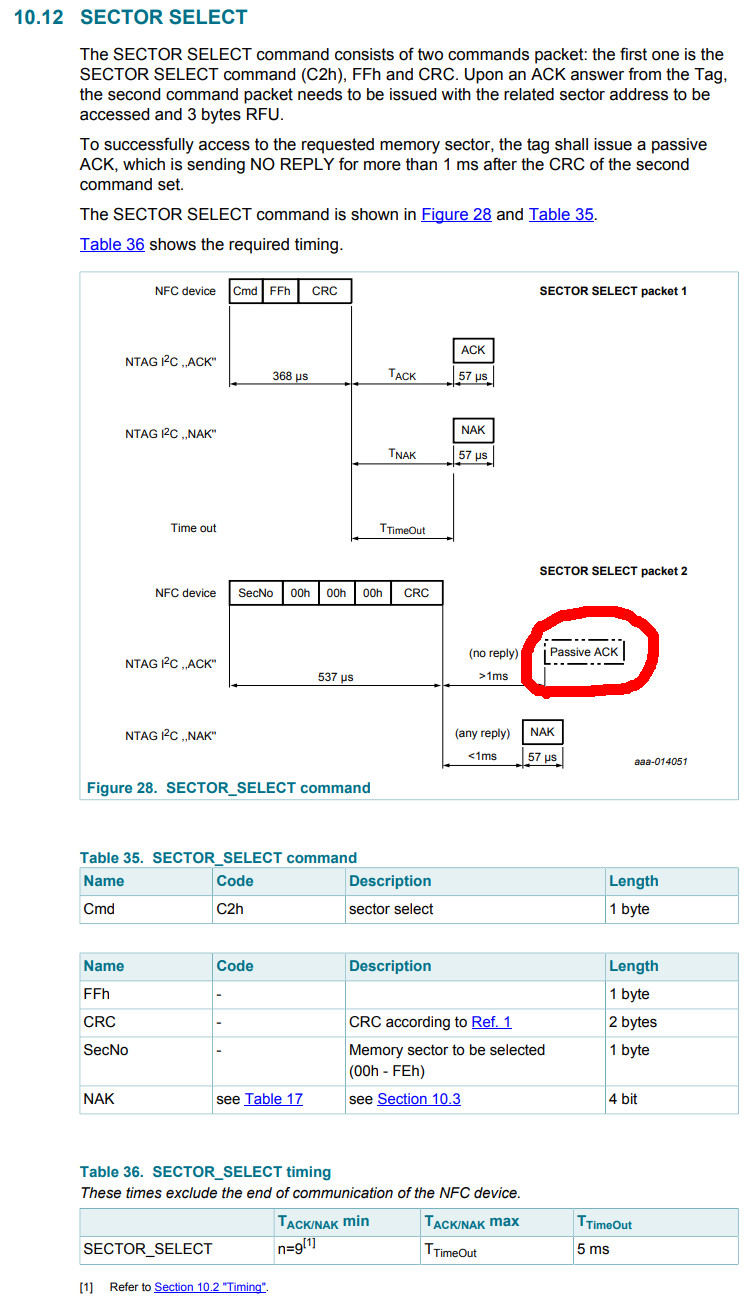

The exact same way I was trying with raw commands—it just failed. And then the answer was suddenly obvious:
async function sectorSelect(
t: Transport,
sector: number,
): Promise<void | false> {
try {
await t.transceive([0xc2, 0xff]); // Success returns ACK (0x0A)
} catch {
return false; // We got a NAK or the transponder left the field
}
try {
await t.transceive([sector, 0x00, 0x00, 0x00]); // Success returns nothing
} catch {
// Error thrown because the controller thinks the transponder
// left the field. In reality, PAK is most likely
}
}
Just suppress the error and keep on partying. Better access to NFC hardware would make PAK detection easier—simply telling if there are transponders in the field. But that would require firmware changes. The PAK, from what I can see, is fairly common with proprietary commands and extends to ISO 15693 as well.
A Better Solution?
During my time chasing down a way to get the Proxmark’s hw tune command to stop saying the HF antenna was borked when a booster board (LC tank circuit) was in use, I thought I was onto something with voltage. But after binning the boards with a VNA, that just wasn’t going to work…
But the coupling state must have an impact physically. So I sped up the ADC that monitors the antenna and watched the voltage decay. I discovered three bands: normal coupling, LC tanks, and when the antenna was on metal.
This ability to to determine coupling/presence is already in common use with lf/hf tune. The NFC controller should be able to detect presence, which gives us a way to know the difference between a PAK and a transponder dropping out of the connection.
Industry-wide firmware-level-up?? 🤞
